Coupling Products

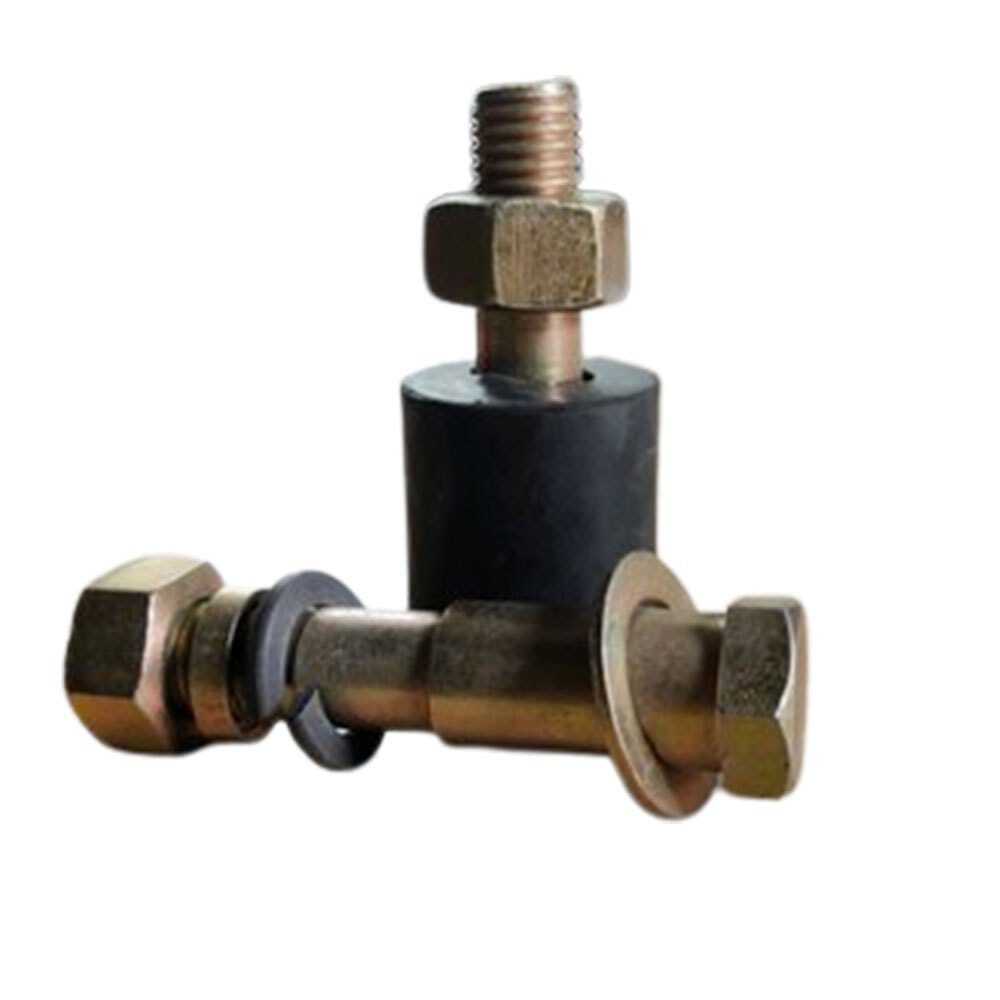

• Application
• Used in mechanical and structural connections, typically to join coupling flanges of shafts or pipelines.

• Bore
• Plain or threaded bore depending on application; standard sizes available

• Connection
• Other, Bolted joint for coupling two components (flanges, shafts, etc.)

• Head Code
• Other, Hex Head or Round Head

• Inner Diameter
• Depends on bolt size; typical M8-M36 range

• Material
• Other, High Tensile Steel, Alloy Steel, Stainless Steel as per requirement

• Max. Speed
• Not directly applicable (depends on rotating assembly if used in shaft coupling)

• Outer Diameter
• Depends on head design; as per bolt size

• Sealing
• No integrated sealing; external gasket or o-ring may be used if required

• Shape
• Other, Cylindrical Bolt with Hexagonal or Rounded Head

• Standard
• DIN 931 / ISO 4014 or as per customer specification

• Structure
• Other, Solid, one-piece bolt with shank and head

• Surface Treatment
• Other, Zinc Plated / Galvanized / Black Oxide (as per requirement)

• Technique
• Other, Machined from high-strength steel rods, precision finished

• Thread
• Metric or Inch Thread as per requirement

• Torque
• Torque rating depends on size/class; typical M20 bolt up to 450 Nm

• Application
• Power transmission, flexible shaft coupling use in industrial machinery and pumps

• Bore
• Machined to standard or customized size

• Connection
• Other

• Head Code
• Round

• Inner Diameter
• Range from 25 mm to 180 mm as per model

• Material
• Other

• Max. Speed
• Up to 5000 RPM

• Outer Diameter
• Range from 80 mm to 530 mm as per model

• Sealing
• Not required; designed for dry use

• Shape
• Other

• Size
• F 60

• Standard
• IS 8570 or DIN 740 standards

• Structure
• Other

• Surface Treatment
• Other, Black oxide finish, anti-corrosive coating

• Technique
• Other

• Torque
• Up to 15,000 Nm depending on size

• Usage
• Use for industrial

• Application
• Used for transmitting torque between shafts in industrial machines

• Bore
• Pilot / Finished according to requirements

• Connection
• Other, Shaft to shaft

• Head Code
• Other, Standard

• Inner Diameter
• Varies (typically 14 mm to 150 mm depending on size)

• Material
• Other, Cast Iron, Rubber, Steel

• Max. Speed
• Up to 7000 RPM depending on model

• Outer Diameter
• Varies (typically 60 mm to 500 mm depending on size)

• Sealing
• Flexible rubber tyre element provides inherent sealing

• Shape
• Round

• Standard
• IS 3531 / DIN 7762

• Structure
• Other, Flexible tyre with two flanges

• Surface Treatment
• Other, Painted / Coated to resist corrosion

• Technique
• Other, Molded / Machined with precision

• Torque
• 10 Nm to 16,300 Nm depending on size

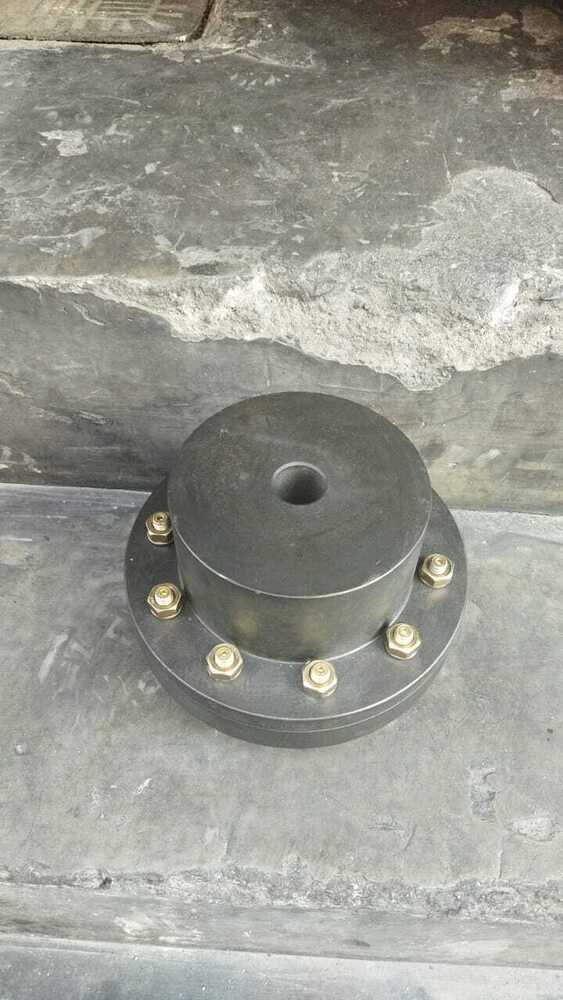

• Application
• Power transmission between two shafts in industrial machinery and pumps

• Bore
• Customized or as per requirement

• Connection
• Other, Pin and bush inserted

• Head Code
• Round

• Inner Diameter
• 25 mm to 200 mm (customizable)

• Material
• Other, Cast Iron, Steel with Rubber Bushes

• Max. Speed
• Up to 3500 RPM

• Outer Diameter
• Up to 400 mm (customizable)

• Sealing
• Rubber bush for vibration damping

• Shape
• Other, Round/Cylindrical

• Standard
• IS 2693 or as per manufacturer

• Structure
• Other, Flexible coupling with pin-bush construction

• Surface Treatment
• Other, Black oxide coated

• Technique
• Other, Machined

• Torque
• Up to 23,000 Nm
